MORPHO 1300E3 FINGERPRINT DEVICE

RD Service Network is your one-stop solution for both RD service renewal and RD service recharge of Morpho 1300E3 L0/L1 Fingerprint Device.

We are here to guide end-users through the Morpho RD Service installation and use with the Morpho MSO1300 L0/L1 Biometric Fingerprint Device. For both L0& L1 Morpho RD service registration and Morpho RD service download, RD Service Network is your one-stop shop.

STQC Certified

MSO 1300 E2/E3 L1 are STQC certified devices provides confidence to the users of the biometric devices these are reliable, secure and of optimum quality

Best Price

This is the right platform for you to look for a Idemia Morpho that fits your budget, technical and design requirements

Unlimited support

In addition to unlimited support, rdserviceonline team of experts provide you with effective solutions to your queries

Real time update

We provide real-time updates that help you to monitor activities on your requested services . .

MORPHO 1300E3 Description

AEPS, CSC, Jeevan Pramaan, Pay Nearby, banking, Ayushmaan Bharat, Nova Pay, or SBI must be integrated with the MORPHO fingerprint reader RD Service.
Morpho fingerprint scanners may be used for logical access control to highly guarded desktops or PCs, as well as applications and enrollments in industrial, business, or governmental settings. Based on an optical sensor, the MorphoSmart Series is quick and cost-effective.
Fingerprint Online Device Registration (RD) for IDEMIA, MSO, MORPHO L0 / L1 – 1 Year, 2 Years, 3 Years with the benefits of a prompt check as well as the opportunity to upload the device picture for activation purposes. After the RD activation, Morpho will not ask for the activation code, unlike before.

MORPHO 1300E3 Features

Excellent security solution
User-friendly
Convenient to use
Offers a reliable, ergonomic, and cost-effective solution for enrollment, identity verification, and user identification.

DOWNLOAD MORPHO 1300E3 DRIVER

WINDOW 10

Morpho SCL RD Service Download for Windows 10 and above

WINDOW 7

Morpho SCL RD Service Download for Windows 7

ANDROID

Morpho SCL RD Service Download for Android

WINDOWS

Morpho SCL RD Service Download for Windows

ANDROID

Morpho SCL RD Service Download for Android

Installation Process Morpho 1300E3

Morpho Fingerprint scanner Installtion Service

Step:- 1(L0)

After downloading the Morpho RD Service for Windows, you need to extract folder and click on the “Windows RD Service” to run under administrative privilige.

Morpho 1300E3 Tips

⇝ MORPHO Biometric Finger Print Device need to successfully integrated with customer business applications having Windows , 8, 8.1, 10 (32 bit and 64 bit) or any higher version.

Step:- 2(L0)

Morpho RD Service Driver installation going on.

Morpho 1300E3 Tips

⇝ Right click on the Unknown Device icon->click on Update Driver- > “Browse My Computer for Driver Software” -> Let me Pick from a list of device drivers on my computer->Have Disk->Browse->go to “C:\Morpho\MorphoSmart USB Driver” and select ”usbBioDriver.inf”” in Driver search location and click on next for completion of manual driver installation and restart the machine for driver installation finalization.

Step:- 3 (L0)

Choose to restart to finish the driver installation.

Morpho 1300E3 Tips

⇝ Morpho RD Service is not a standalone application. To access the functionality of Morpho RD Service, customers required one more AUA / KUA application.

Step:- 4 (L0)

After the successfull restart click on the RD Service Test Page.

Morpho 1300E3 Tips

⇝ Plug in the MORPHO Biometric Fingerprint Device. If MORPHO USB driver is installed successfully, the device would be detected (it will blink light for a fraction of second).

Step:- 5 (L0)

Click on the Rd Service to check the device status, RDServiceStatus=READY demonstrate the successfull installation.

Morpho 1300E3 Tips

⇝ On successful installation, please make sure that MoprhoRDserviceL0Soft is created on C Drive with 35 files.

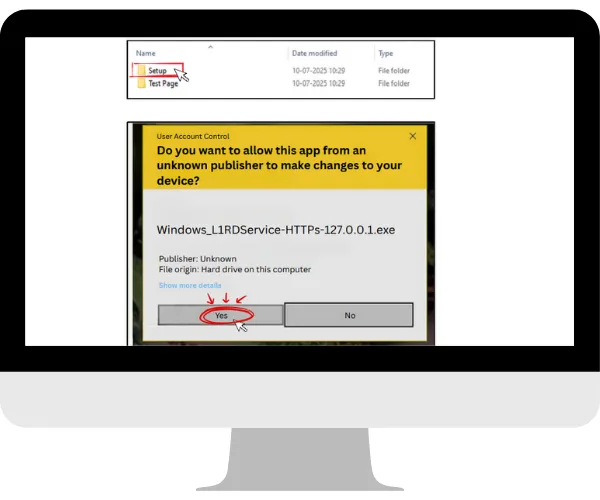

Step:- 1 (L1)

After downloading the Morpho L1 RD Service for Windows, you need to extract the folder and click on the Extract all.

Morpho 1300E3 Tips

⇝ Tip: Integrating the MORPHO L1 Biometric Finger Print Device with your business applications on Windows systems (8, 8.1, 10 - 32 bit and 64 bit, or any higher version) is our primary goal.

Step:- 2 (L1)

Click on the Install Button and wait for a while Installing

Morpho 1300E3 Tips

⇝ Tip: High speed internet connection is must to install rd services and antivirus should be disabled before installing on your system.

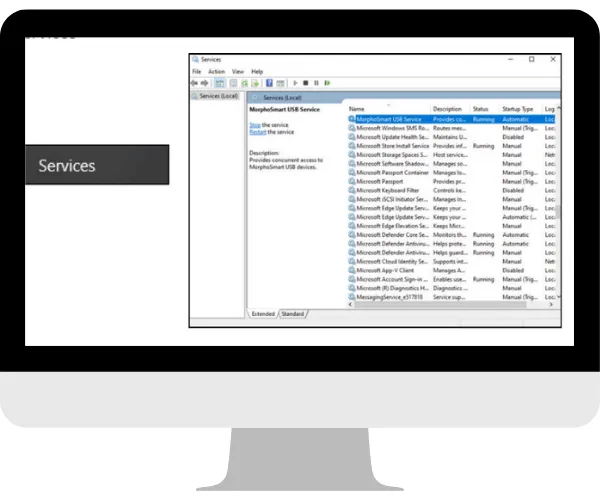

Step:- 3 (L1)

Morpho L1 RD Service Driver installation going on.

Morpho 1300E3 Tips

⇝ Tip: To install the driver for the Unknown Device, follow these steps: Right-click on the Unknown Device icon and select "Update Driver." Choose the option "Browse My Computer for Driver Software." Select "Let me Pick from a list of device drivers on my computer." Click on "Have Disk" and then "Browse." Navigate to the location "C:\Morpho\MorphoSmart USB Driver" and find the file named "usbBioDriver.inf." Select the "usbBioDriver.inf" file and click on "Next" to proceed with the manual driver installation. Once the installation is complete, restart your computer to finalize the driver installation.

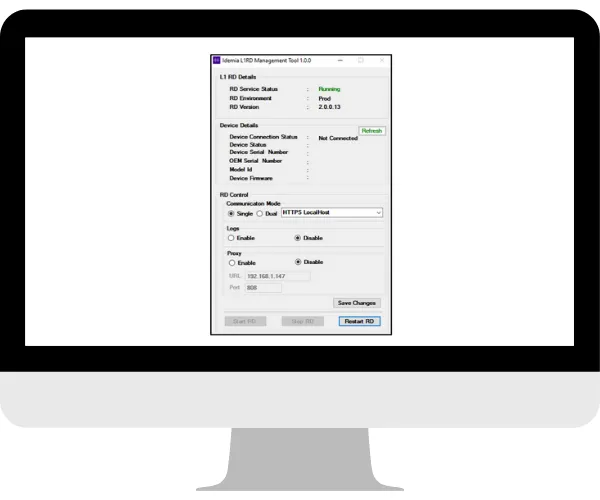

Step:- 4 (L1)

Choose to restart to finish the driver installation.

Morpho 1300E3 Tips

⇝ Tip: Morpho L1 RD Service is not a standalone application. To access the functionality of Morpho L1 RD Service, customers required one more AUA / KUA application.

❮

❯

Step:-1

Download Morpho SCL RdService by Mantra Softech India Pvt. Ltd. from Play store on you android device.

Morpho 1300E3 Tips

⇝ You need an Android OS based Smartphone. The Android OS version should be 4.4 (Kitkat) or above.

Step:-2

Allow Morpho SCL RdService to make calls & manage phone calls as shown in image.

Morpho 1300E3 Tips

⇝ The Authentication API 2.0 specification can be available here. https://uidai.gov.in/images/FrontPageUpdates/aadhaar_authentication_api_2_0.pdf .

Step:-3

Allow Morpho SCL RdService access to photo & media while using the app as shown in image.

Morpho 1300E3 Tips

⇝ The Morpho E1300 is currently certified for L0 level of registered device category.

Step:-4

Please wait while device is checking root status.

Morpho 1300E3 Tips

⇝ Morpho 1300 e series devices are used for e-kyc purpose.

Step:-5

Please wait to register the device root status.

Morpho 1300E3 Tips

⇝ For Morpho 1300E rd services customer required additional AUA/KUA application

Step:-6

Please wait to get the pop-up “your device is ready to use”

Morpho 1300E3 Tips

⇝ The main window of RDClient will be shown as following images as per usb device connected with phone.

Step:-7

Click over “i” on the top right corner to get the device details.

Morpho 1300E3 Tips

⇝ Morpho 1300 e3 fingerprint readers offer an optimal balance between security and convenience.

❮

❯

BUY NOW

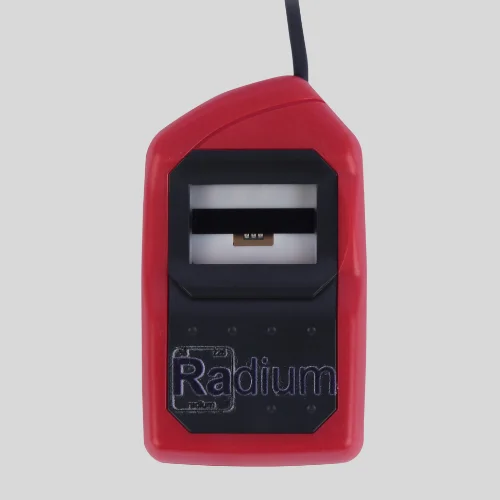

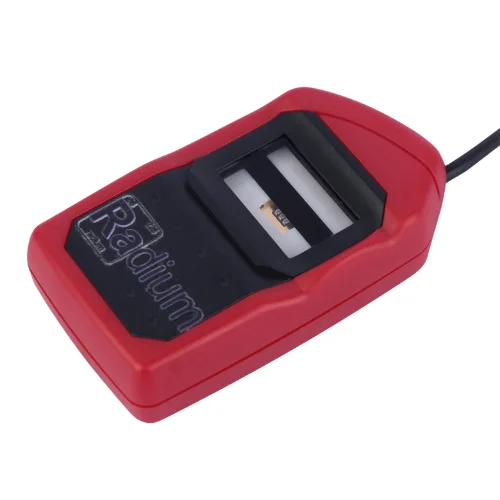

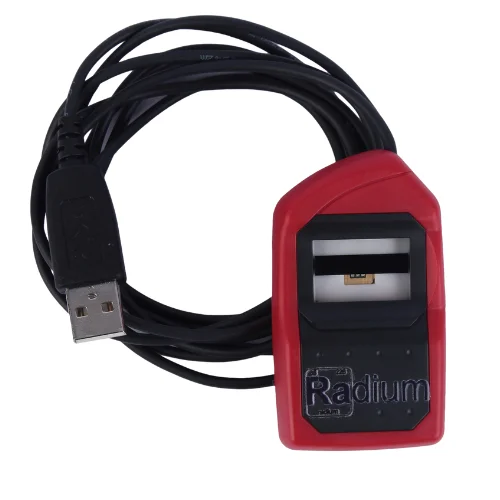

Morpho Optical fingerprint Scanner

Model

Morpho MSO1300 E3
SKU

RB0004
Condition

New
Security Level

L1
Warranty

1 Year
RD Service

1 Year
Price (Including 18% GST)

₹ 3749/-
Shipping

Free
